good day to everyone
i am mordehay the  tecnition  [electriction]
i have 3 ingersol rand compressor  controld by  electronic panel
the name of the controller is " intellisys controler "  [ssr  m22-150 kw] made by ingersol rand
i need to comunicate to this panel with rs485  by modbus protocol
the list of the register is not abig problem [i find it in the enternet]
but i need the description of the rj11  conector caled "j7"  [+rx -rx +tx -tx ??????]
and how to set the modbus staition [ j11 jumper ????]
i look in the ethrnet and cant find
i dont think ingersol rand wod help [ i try ]
can someone help?  do someone do this comunication ??
have good day
thank you

Let me see if I can find someone who can help with this, it is a very detailed question.

Thanks

good day
i am mordehay the tecnition who ask the help
ther is develop in situation
intellisys controller  does not have modbus protocol
it must be conected to a getway unit calld iri-x made by ingersoll rand
this unit can setup the staition of modbus
some  intellisys controller must  chang the eprom
it wery expensive steps
i  am trying to  solve the intellisys protocol
buy

Boker tov Mordechai
Unfortunately I have never seen any of these compressors, but click the link below, perhaps you can find some info there. Good luck !

http://www.irtechpubs.com/ir_pdfs/Compressed%20Air/Air%20Compressors/Rotary%20Compressor/80445174.PDF

Daniel,  thanks for sharing the IR info.

Good afternoon to all

we have a series of questions regarding what you mentioned, like Banaim, we are connected 3 air compressors from Ingersoll Rand, bought a card "X-IRI" Model XPM-G1. When we connect to the compressor is connected as the manual says, the LED remains static 9, and  the Led 5 and 4 are flashing, indicating that the connection to the compressor is correct, now we try to connect the MODBUS  X04 and X05 ports with a gate "TSXEGT100" and "TSXEGT1000" with settings showing the manual which are: 8 data bits / no parity / 1or 2 stop bits (8, N, 1 or 8, N, 2) - Transmitted at 9600 baud, but we could make the communication, the LED 6 keeps flashing, and we see no data in the table proposed modbus manual for the compressor, in addition to this we also tested directly with the SCADA Intouch 10.1 with the Modbus Serial DasServer v1.5, we tested changing speeds, parity and reversing the wires.

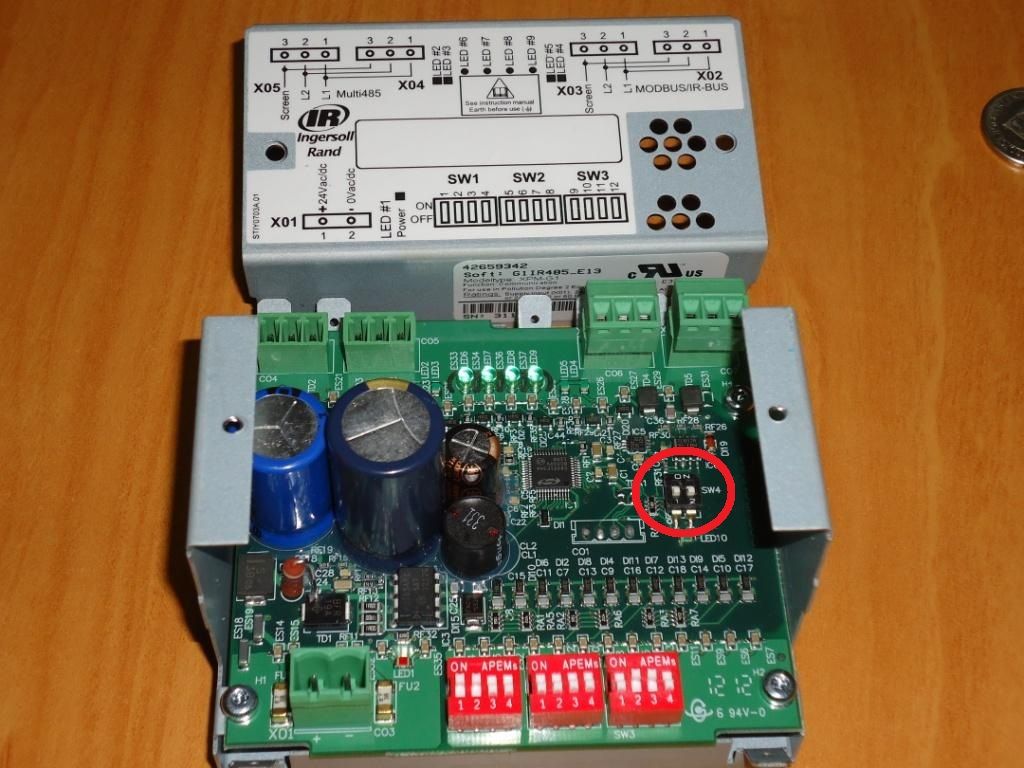

We opened the X-IRI and we see that there are a series of DIP switches, we do not know what they are used and we want to know how it works, this annex to place the image of the gate. the compressor model is the "Sierra H350A", please if you know how to be the topology for reading data via modbus compressor will be helpful. Thanking you in advance

Manual X-IRI:
http://es.scribd.com/doc/74164081/Many0915a-gb-X-iri-Operators-Manual-80445596-En

Manual Gateway TSXETG100:
http://www2.schneider-electric.co.jp/appl/Elibrary/SETechnical_DB_INT.nsf/e4702d43291aa359492572b4000e44bc/5ee40d91cfa708214925713e002ed4b0/$FILE/63230-319-211a1.pdf

X-IRI Photo:

Ensure all System Modbus Gateway module selector switches are set to the OFF position.

.

can we prove only gated X-IRI without the compressor controller, and try to read the directions in the manual? or we need to have the X-IRI and the controller connected to read the directions?

Hi,
were you able to solve your problem?

thank you
